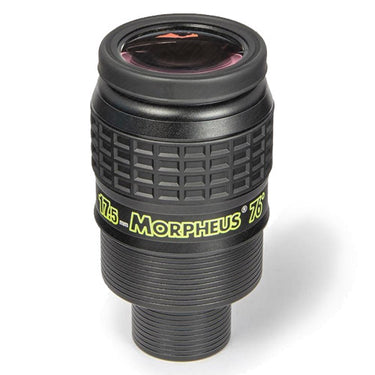

BAADER 17.5 mm Morpheus® 76° widefield eyepiece
BAADER 17.5 mm Morpheus® 76° widefield eyepiece
$449.00
/
Pickup currently unavailable at Shop location
The eyepiece is half the optics of a telescope - and when trying to use the optical system to its limits even good middle class eyepieces are becoming the limiting factor. Morpheus® eyepieces provide a sharp image right to the edge of the (true) 76° field of view. The brightness and richness of contrast offers a new dimension in eyepiece design. These eight-lens eyepieces with Phantom Coating® Group excel at planetary observation as well as deep-sky objects - especially when serving as photographic projection eyepieces due to their flat field design.
All Morpheus® wide-field eyepieces with 4.5 to 17.5 mm focal length form the perfect complement to your low magnification eyepieces. Even at highest magnification, each Morpheus® eyepiece does provide a larger field of view than what is claimed for by many eyepieces with over 80 degrees of apparent field of view. The absence of distortion in the eyepiece enables you to oversee the full field at once and to easily find the best viewing position, while enjoying a spacewalk feeling unmatched by others. You will see deep sky objects wonderfully embedded into their stellar surroundings. In addition, the large, sharp field of view gives you much more viewing time on non-motorized (Dobsonian) telescopes without touching the telescope and w/o changing the eyepiece. All Morpheus® eyepieces feature both 1.25" and 2" nosepieces without the much hated undercuts. Still all Morpheus® eyepieces are perfectly safe against slipping due to their multitude of individual Safety-Kerfs cut into the barrels. The 2" nosepiece is integrated into the eyepiece body which saves about 21 mm in focus travel. This becomes especially useful with ultra low focal plane (visual Newtonian) telescopes. And for many other scopes it does eliminate the need for a 2 "/ 1¼" reducer adapter.
GENERAL | |
---|---|
MANUFACTURER | Baader Planetarium |
SKU (#) | 2954217 |
EAN CODE | 4047825030313 |
NET WEIGHT (KG) | 0.38 |
EYEPIECE SERIES | Morpheus |
SPECIFICATIONS | |
FOCAL LENGTH | 17,5 mm |
APPARENT FIELD OF VIEW | 76° |
EYE RELIEF (MM) | 23 mm |
AR-COATING | Phantom Coating® Group |
PARFOCAL EYEPIECES | No |
SPECIAL FEATURES | Photo-luminescent engraving: lets you find the correct eyepiece at all times |
BARREL SIZE (IN) | 1¼", 2" |
OPTICAL DESIGN | Wide Angle |
SPECIALITY | Eyepiece projection: classical |
EYEPIECE DESIGN | |
FIELD STOP DIAMETER | 23,55 mm |
FIELD STOP DISPLACEMENT TO REFERENCE PLANE | + 2,5 mm |
NUMBER OF LENS ELEMENTS | 8 |
NUMBER OF GROUPS | 5 |
BACKFOCUS GAIN W. 2“ BARREL (MM) | 21 mm |
SLIP PROTECT SAFETY | Safety Kerfs |
EYEPIECE BODY ABOVE REFERENCE PLANE (MM) | 77,5 mm |
LENGTH OF 1¼" BARREL (MM) | 24 mm |
LENGTH OF 2" BARREL (MM) | 21 mm |
OUTER DIAMETER | 55 mm |
CONNECTIONS | |
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | M43 |
INNER CONNECTION (LENS SIDED) | M28.5 |
OUTER CONNECTION (LENS SIDED) | ø 1¼" (31.75 mm), ø 2" (50.8mm) |
CAMERA THREAD | M43 |
THREADED FOR FILTERS | Yes |
INCLUDED ITEMS | |
DUSTCAPS | 1¼" dustcap (31,8mm), 2" dustcap (46.5mm - fits over eyecup), 2" dustcap (49mm) |
EYECUPS | rubber/metal, folding eyecup with M43 thread, winged eyecup (M43) |
INCLUDED ACCESSORIES | Cordura eyepiece holster for fast access, Focallength Indicator-Clip, M43/M43 extension |
OPTIONAL ACCESSORIES | Baader Utility Bag #2954201 for small accessories |
