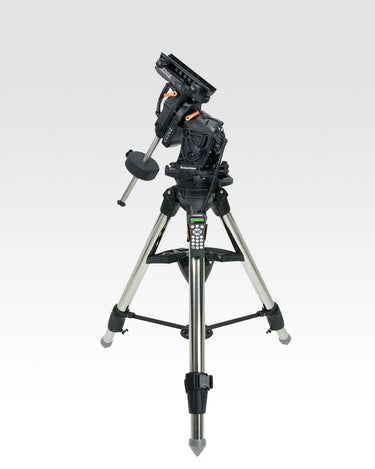

Celestron CGX-L EQUATORIAL MOUNT AND TRIPOD

Celestron's CGX-L Computerized Equatorial mount is the latest addition to our fully computerized equatorial mount series. Capable of carrying Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

Key design goals included larger 144mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport. COMPACT. ERGONOMIC. INNOVATIVE.

• Mount Type Computerized Equatorial
• Instrument load capacity 34 kg
• Height adjustment range (includes mount and tripod) 908.05mm - 1339.85mm (35.75" - 52.75")
• Tripod Leg Diameter 69.85mm (2.75") Steel tripod with graduated markings on lower section
• Latitude adjustment range 3° - 65°
• Mount Head Weight 23.8 kg
• Accessory Tray Yes/LI>
• Tripod Weight 21 kg
• Weight of Counterweights 1 x 10 kg
• Slew Speeds 9 slew speeds - max speed 3°/second
• Tracking Rates Sidereal, Solar and Lunar
• Tracking Modes EQ North and EQ South
• GPS N/A
• Dovetail Compatibility Dual saddle plates (Vixen and CGE saddle)
• Number of Auxiliary ports 4 Aux ports (Hand Control can use any Aux port, 2 are located near the dovetail saddle for optional accesories)
• Autoguide port Yes, 2 ports (one is located near the dovetail saddle)
• USB Port Yes, input for Mount and Hand Control
• Power Requirements 12V DC, 3 amps
• Motor Drive DC servo motors
• Alignment Procedures 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
• Periodic Error Correction Yes
• Computerized Hand Control 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 port for PC connection
• NexStar+ Database 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
• Software PWI Telescope Control Software, Celestron's Starry Night Special Edition Software, SkyPortal App
• Total Kit Weight 54.8 kg
• Included Items CGX-L Equatorial Head | CGX-L Tripod | Accessory Tray | 1 x 10 kgs counterweight | NexStar+ Hand Control | DC Power Cable (item# 18769) | 8mm Allen wrench (contained in rear carry handle)

SPECIFICATIONS
