ZWOSKU: ZWO-AM5

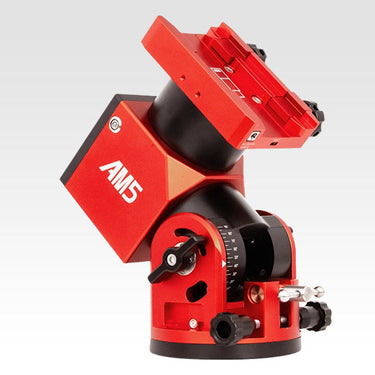

ZWO AM5 Harmonic Equatorial Mount Head (No Tripod)
$3,699.00
/
Sold out
ZWO AM5 Harmonic Equatorial Mount Head (No Tripod)
$3,699.00
/
ZWO AM5 Harmonic Equatorial Mount Head (No Tripod)
$3,699.00
/
Pickup currently unavailable at Shop location
The ZWO AM5 is a new low-cost strain wave-geared equatorial/alt-az mount for on the go visual observing and astrophotography.
- Mount type
- Alt-Az/Equatorial
- Max payload 13 kg without counterweight, 20 kg with counterweight
- Mount weight
- 5 kg
- Drive Strain wave gears + synchronous belt
- Reduction ratio
- 300:1
- Periodic error (PE) approx 20 arcsec, 432 seconds duration
- RA drive NEMA42 stepper motor + brake
- DEC drive NEMA35 stepper motor
- Weight 5 kg
- Latitude adjustment range 0º ~ 90º
- Azimuth adjustment range ± 10º
- Dovetail saddle Losmandy and Vixen
- Counterweight shaft M12
- Stepper motor resolution 0.17"
- Max slew speed 6º/S
- Power port DC 5.5 x 2.1 12V 3A
- Power consumption 0.386A standby, 0.58A tracking, 1.5A GOTO
- Guide port ST4
- Communication interface USB / Wifi, ASCOM, INDI (LX200)
- Zero Position Mechanical
- Operating Temperature -20º - 50º C
- Power failure protection Yes
- SKU ZWO-AM5
