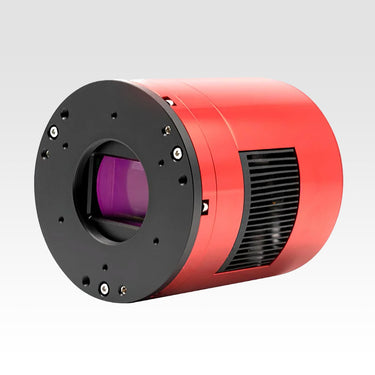

ZWO ASI 2600MC PRO Camera [COLOUR]
ZWO ASI 2600MC PRO Camera [COLOUR]
$2,499.00
$2,299.00
/
Pickup currently unavailable at Shop location
Camera technical details
Sensor: SONY IMX571 CMOS
Diagonal: 28.3mm
Image area: 23.5x17.5mm
Resolution: 26 Mega Pixel 6248*4176
Pixel Size: 3.76µm
Bayer Pattern: RGGB
Shutter:Rolling shutter
Exposure Range: 32µs-2000s
ROI: Supported
Read Noise: 1.0-3.3e
QE peak: over 80%
Full well: 50000e
ADC: 16bit
DDRIII Buffer: 256MB
Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface: USB3.0/USB2.0
Interface: USB3.0/USB2.0
Adaptor: M42X0.75
Protect window: D60-2 IR Cut
Dimensions: 90mm Diameter
Weight: 700g
Back Focus Distance: 17.5mm
Cooling: Regulated Two Stage TEC
Delta T: 35°C below ambient
Camera Power consumption: 1.15A at 5V
Cooler Power consumption: 12V at 3A Max
Working Temperature: -5°C—50°C
Storage Temperature: -10°C—60°C
Working Relative Humidity: 0%—80%
Max FPS at full resolution:
16Bit ADC
6248×4176 3.51fps
4096×3072 4.75fps
4096×2160 6.71fps
3840×2160 6.71fps
1920×1080 13.13fps
1280×720 19.29fps
640×480 28.06fps
320×240 51.44fps
More resolutions can be seen in software. Customized resolution is also supported.
